PTM-22-4B In-Ear Monitor System – UHF Mono Wireless with 2 Loop Outputs

$676.19 AUD
$676.19 AUD
Tax included. Shipping calculated at checkout.
Frequency Version: 902-928 MHz
Brand: Phenyx Pro
Ships Fast from Australia: In stock
SKU: PTM-22-4B-AU-900
PTM-22-4B | UHF Mono Wireless In-Ear Monitor System w/ 2 Loop Outputs - MSM AV - MSMAV
$676.19 AUD
$676.19 AUD

One Monitor Station. Diversified Monitoring Experience.

The PTM-22 wireless IEM system tackles the challenges of floor monitor in live performances, allowing you to freely move on stage, engage with fans, and share a monitor station with your bandmates while personalizing your monitoring experience. The flexible and diversified mono monitoring experience lets you focus more on your content. With convenient loop outputs, the exceptional entry-level monitoring solution allows you to better navigate your music adventures.

Features

  • Crystal-clear mono audio without latency lasts throughout your whole performance.
  • The PAD button lowers the input gain to prevent loud input sources from overloading and clipping the preamplifier.
  • The LOOP OUT design for flexible routing operation.
  • Two stand-alone mixes offer a flexible and diverse monitoring experience.
  • Selectable UHF frequency design to avoid interference easily.
  • Quick IR sync and one-touch frequency selection for fuss-free operation.

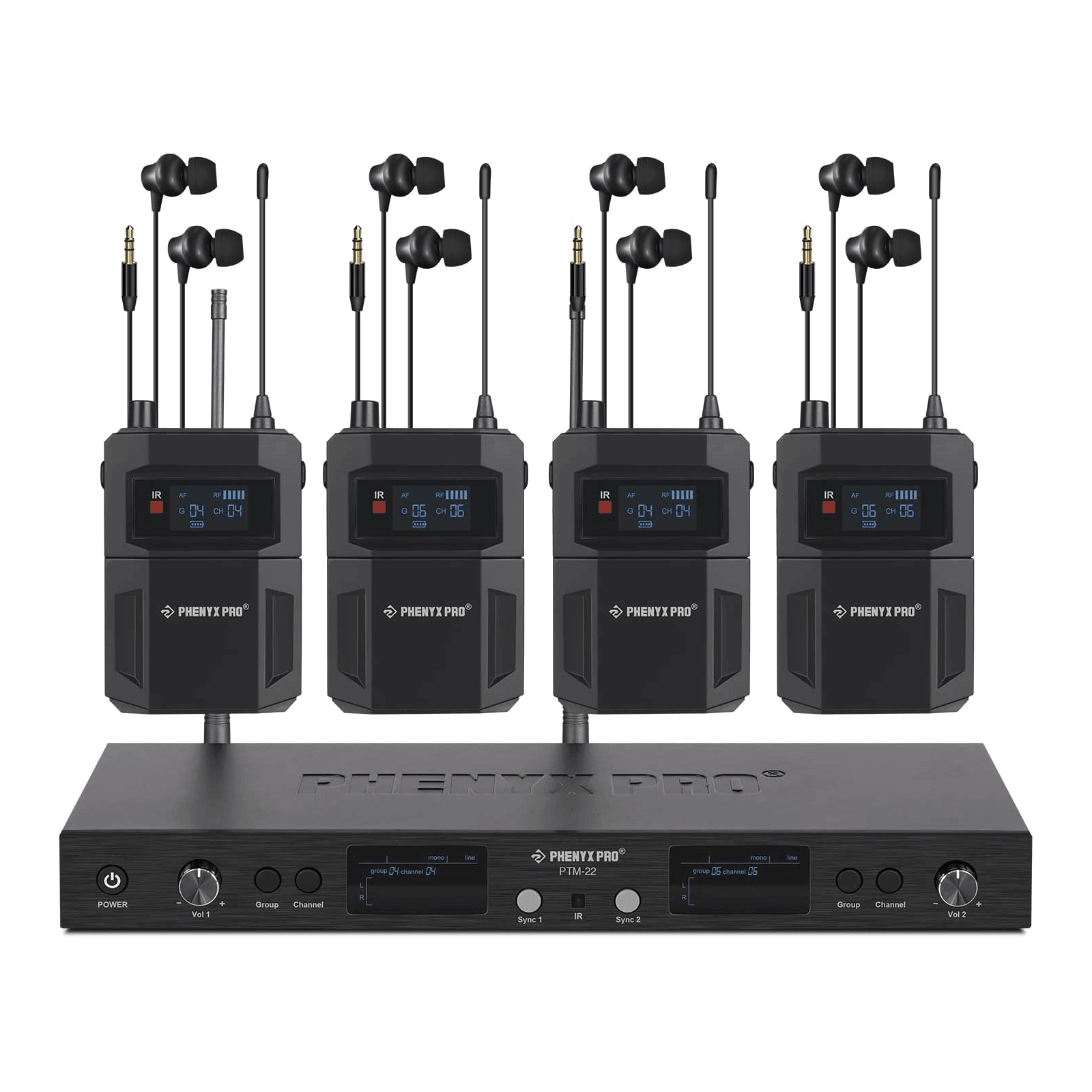

  • One transmitter base unit can add as many bodypack receivers as you need.

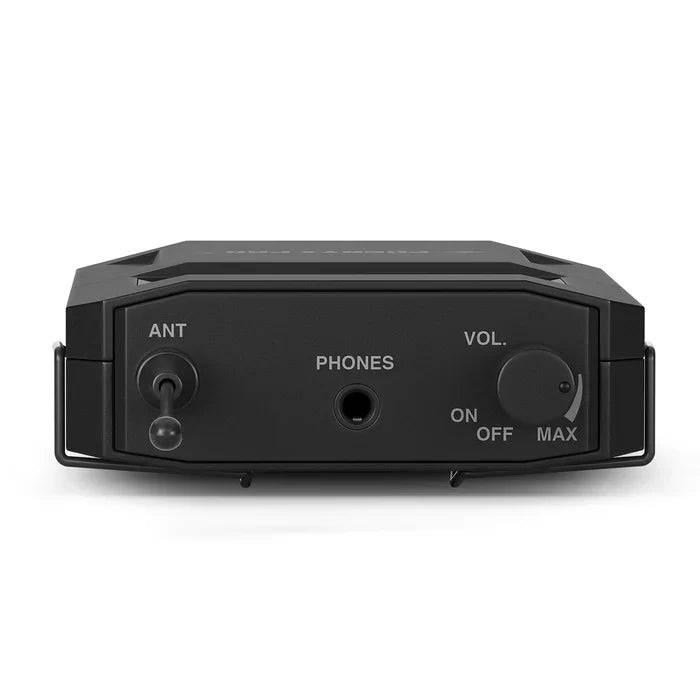

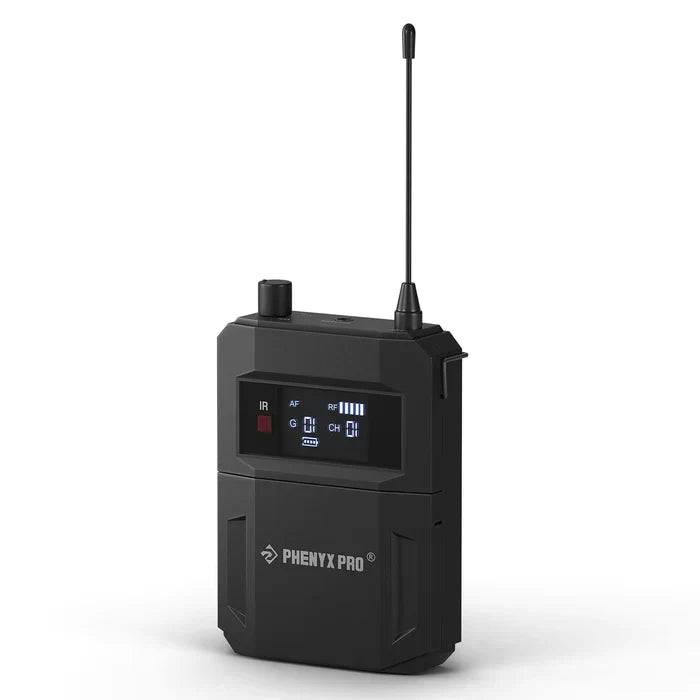

  • Rugged-built receivers and bodypacks with a sleek design.

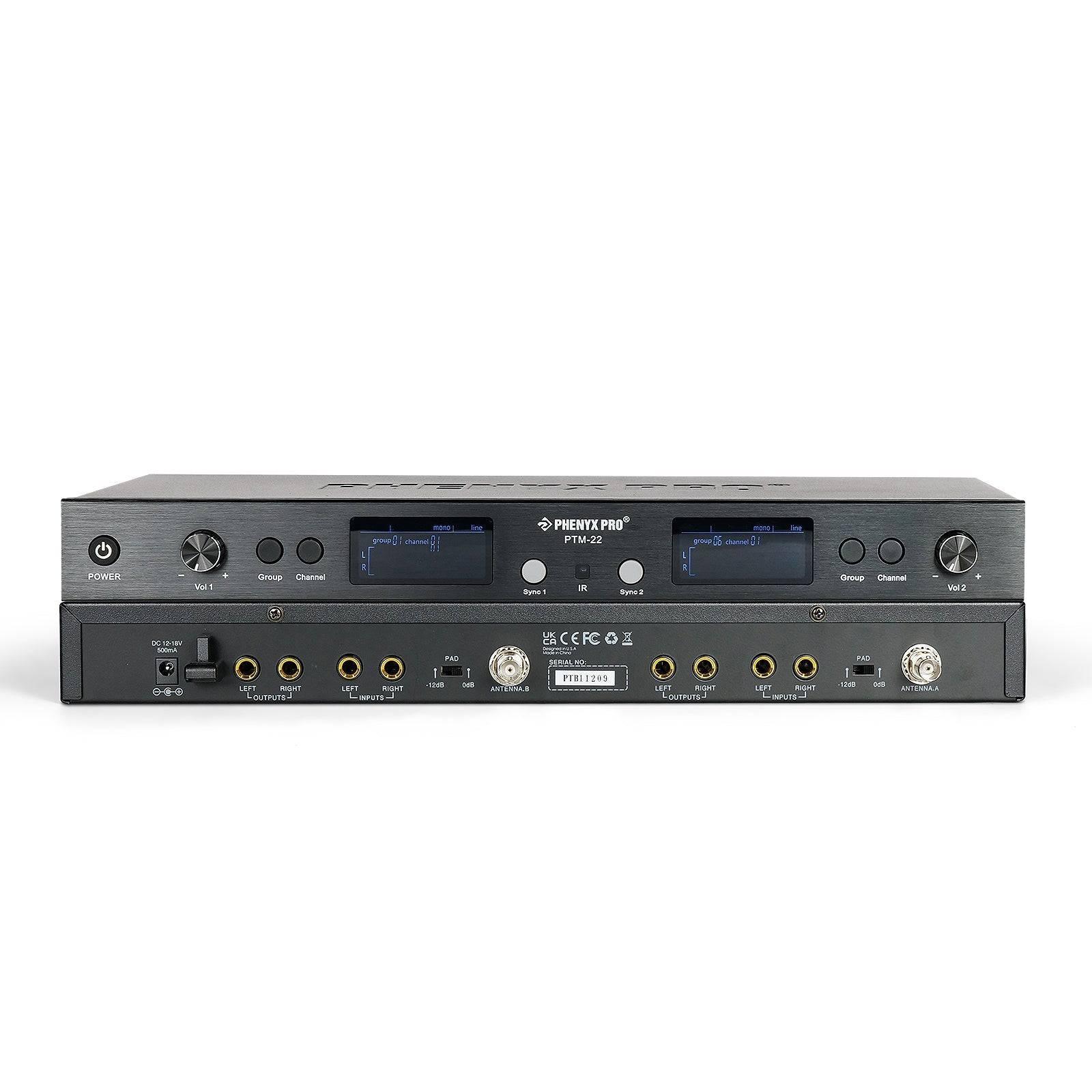

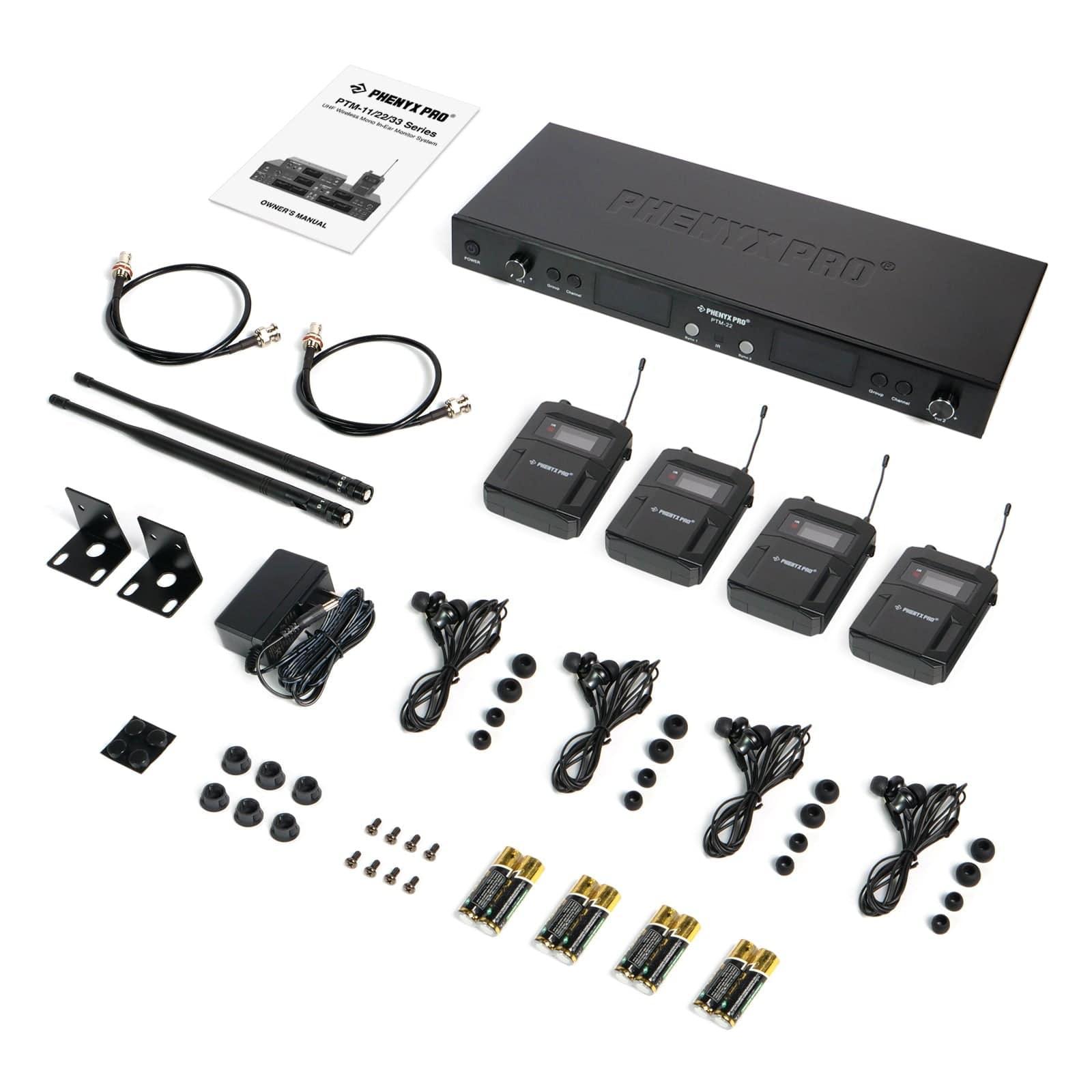

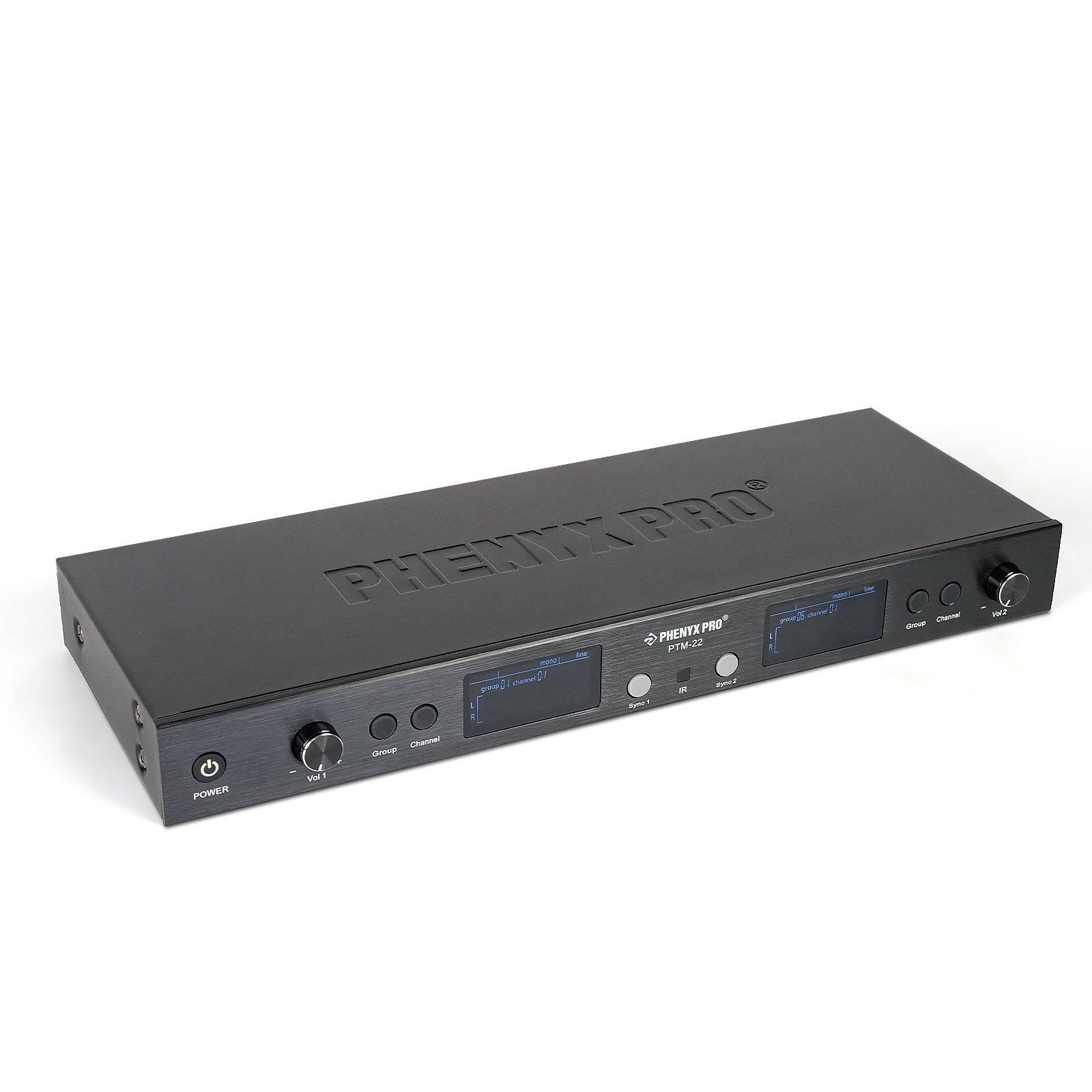

  • Rack-mountable with brackets included in the package.
  • Up to 164ft/50m free operation range.
  • Operates in the 900MHz/500MHz range. 902.35-927.6MHz (2x50 frequencies); 530.05-554.8MHz (2x50 frequencies).

Product Manual

Product Manual (PDF) - English

Video Guide

Frequently Asked Questions

If this is a stricyly mono unit why does it have left and right inputs?

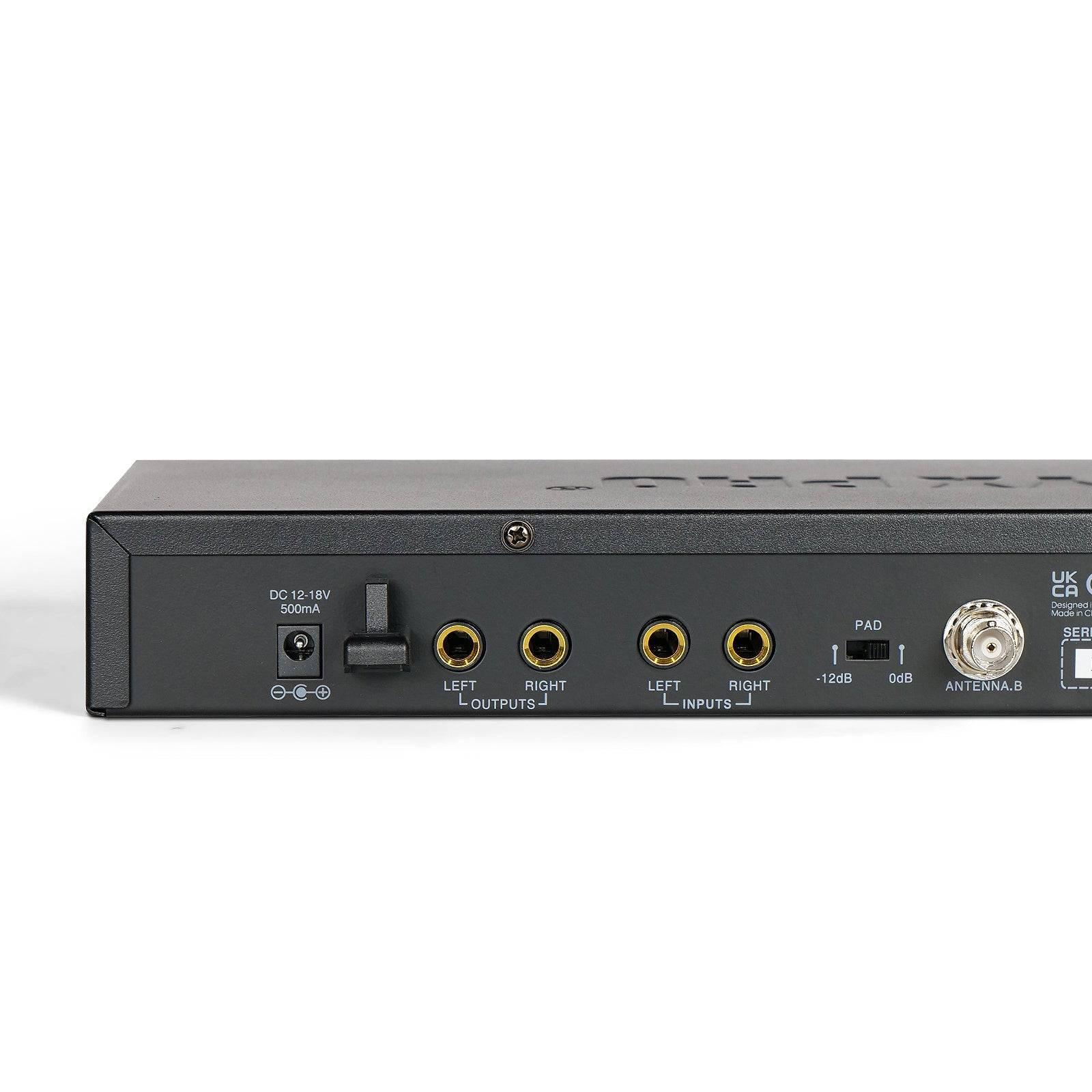

Even though a mono wireless monitoring system outputs in mono (single channel), it has left and right inputs for flexibility (you can choose to input signals into either the left or right channel for better audio management.) and compatibility (the two inputs on the monitoring system make it easier to connect to mixers and interfaces).

Since there are stereo inputs, can this unit work as either mono or stereo?

The PTM-22 is a mono wireless in-ear monitor system and it cannot work as a stereo IEM.

Can I use multiple units together? I need to monitor 6 artists at the same time.

This series supports multi-set operation with the following maximum simultaneous system configurations:

  • PTM-11 (500 MHz): up to 5 units
  • PTM-11 (500 MHz): up to 4 units
  • PTM-22 (900 MHz / 500 MHz): up to 2 units

If you would like to monitor 6 artists at the same time, we recommend you purchase one PTM-33 and one PTM-22 and split them into two frequency ranges, e.g, the PTM-33 in the 900MHz and the PTM-22 in the 500MHz.

Can you use two PTM-33s simultaneously? If so, do you have a list of acceptable group/channels to allow 8 channels at the same time?

For the PTM-11/22/33 series, we do not recommend using more than six channels simultaneously within a single frequency range. You can split the channels into two frequency ranges, e.g, one PTM-33 in the 900MHz and one PTM-33 in the 500MHz.
