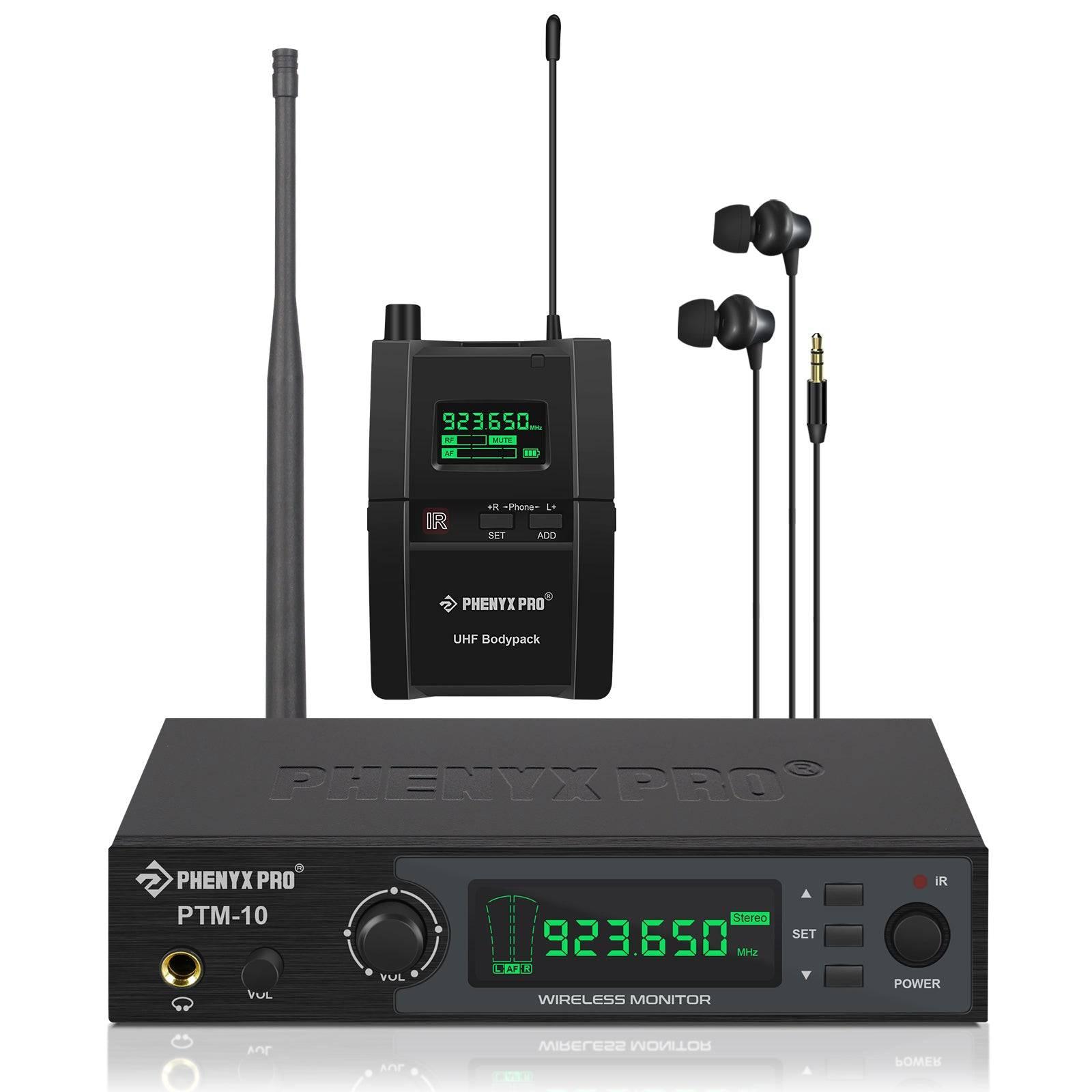

PTM-10-1B In-Ear Monitor System – UHF Stereo Wireless

$434.69 AUD
$434.69 AUD
Tax included. Shipping calculated at checkout.
Brand: Phenyx Pro
Ships Fast from Australia: In stock
SKU: PTM-10-1B-AU
PTM-10-1B | UHF Stereo Wireless In-Ear Monitor System - MSM AV - MSMAV
$434.69 AUD
$434.69 AUD

Empower Immersive Stereo Monitoring

The PTM-10 emerges as an ideal stage partner for discerning music enthusiasts and professional performers. It provides an immersive stereo sound monitoring experience to let you hear the difference. With multiple customisable functions, it empowers you to fine-tune your monitor mix and boss the sound.

Features

  • Immersive stereo monitoring experience with up to 93% sound separation to hear the difference.
  • Exceptional, pure, distortion-free sound performance without latency.
  • The PAD button lowers the input gain to prevent loud input sources from overloading and clipping the preamplifier.
  • The powerful receiver features multiple practical functions, including stereo/mono selection, balance, equalizer, limiter, and lock functions.
  • Quick IR sync and one-touch frequency selection for fuss-free operation.
  • The adapter cord tie-off for manageable cabling.

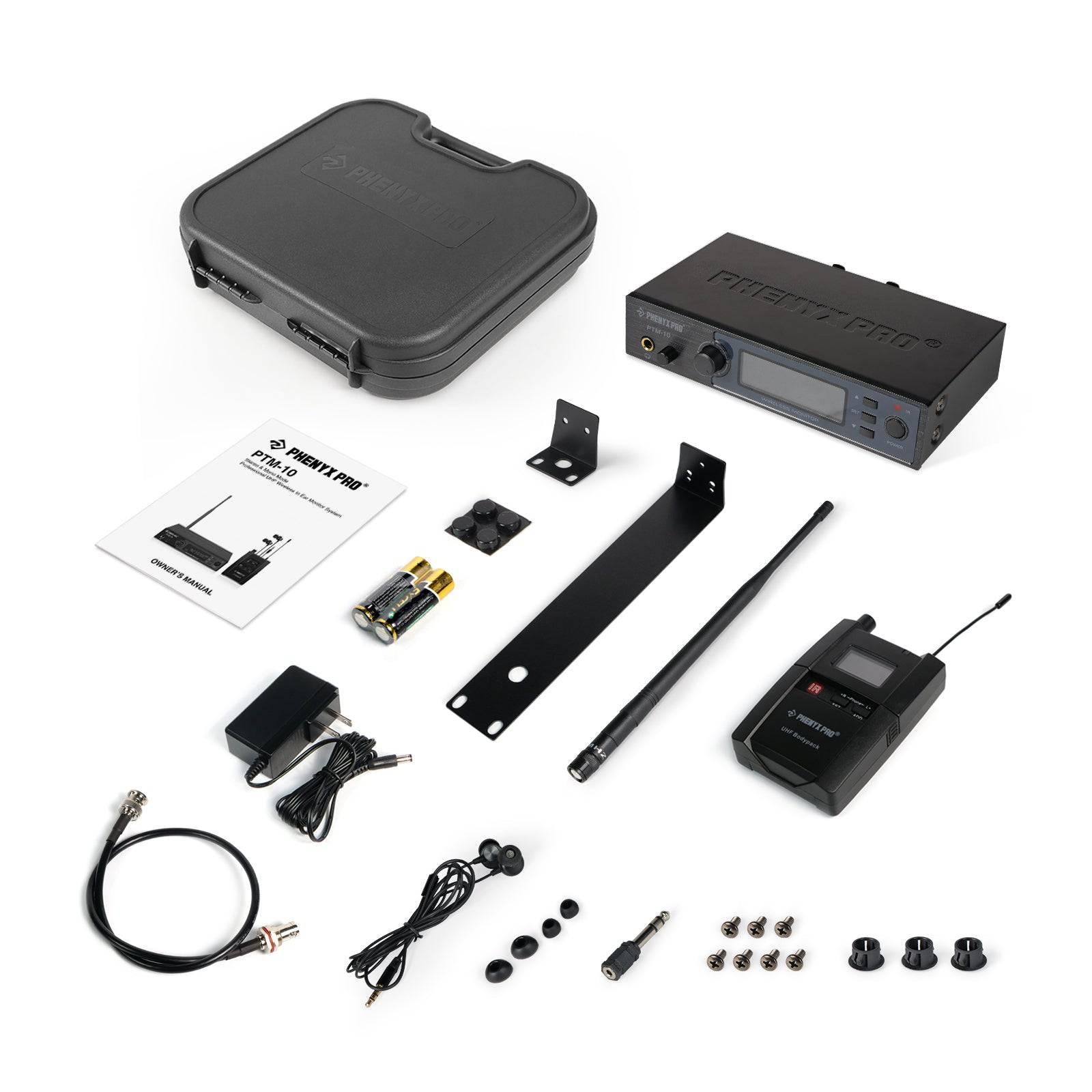

  • Included metal rack-mount kit for the professional workflow.
  • The black PVC carrying case protects the system while in transit.
  • Up to 160ft/50m of free operation range.
  • 89 adjustable UHF frequencies in 900MHz range for multiset operation. 905–925 MHz (89 frequencies).

Product Manual

Product Manual (PDF) - English

Video Guide

Frequently Asked Questions

Can we use two or more systems at the same time?

Sure! PTM-10 supports multi-set operation with up to 5 systems in the 900 MHz band and up to 4 systems in the 500 MHz band.

My bodypack says"MUTE" so I am hearing nothing. How can I fix this?

The bodypack receiver will show MUTE when it did not receive signal from the transmitter base unit. When you synchronize them together and the receiver received signal, the RF signal displace will show signal strength and the MUTE will automatically disappear. For the IR sync process. Once you select desired frequency and the screen shows "Ir -------", please aim the IR window of the bodypack to the IR window on the transmitter base unit (the red flash), then they will automatically sync within several seconds. You will see the frequency on the bodypack match that on the transmitter. Tutorial Video

How do you mount two transmitters side by side in a rack case?

You can mount one system in one rack space using the antenna kit included in the package. For side by side installation, you can use our dual rackmounting kit.

Would this transmitter audio to 2 bodypacks? If so can I purchase a second bodypack?

The PTM-10 is a selectable frequency system, you can connect as many bodypack receivers as you want to the base transmitter unit. Only need to make sure you syn the bodypacks to the same frequency as the transmitter's. PTM-10 Bodypack

Does the PTM-10 system allow each person the ability to have their own personal mix in their ear or does each receiver receive the same mix from the digital console?

Each bodypack will receive the same mixes from the transmitter. However, the highlight of PTM-10 is the stereo function and it can send two different mixes to both ears with one transmitter. Set the bodypack to MONO mode and pan to select which input you want. The mono audio will go to your both ears. In this way, you can have two bodypack listenings to two different mixes with one system.

Can you use any earbuds with this system?

Yes, the bodypack interface designed with standard 3.5mm TRS, it will compatible with other headphones and earbuds.
