By Blackmagic Design

Blackmagic Design HyperDeck Studio HD Plus Broadcast Recorder

Write Review
Regular price $1,289.99 AUD
Regular price Sale price $1,289.99 AUD
Tax included. Shipping calculated at checkout.
Ships Fast from Australia: Out of stock
SKU: HYPERD/ST/DCHP
Regular price $1,289.99 AUD
Regular price Sale price $1,289.99 AUD

The Blackmagic Design HyperDeck Studio HD Plus steps the HyperDeck line up to 6G-SDI, Ultra HD recording and graphics playback with fill and key — in a half rack, one rack unit chassis.

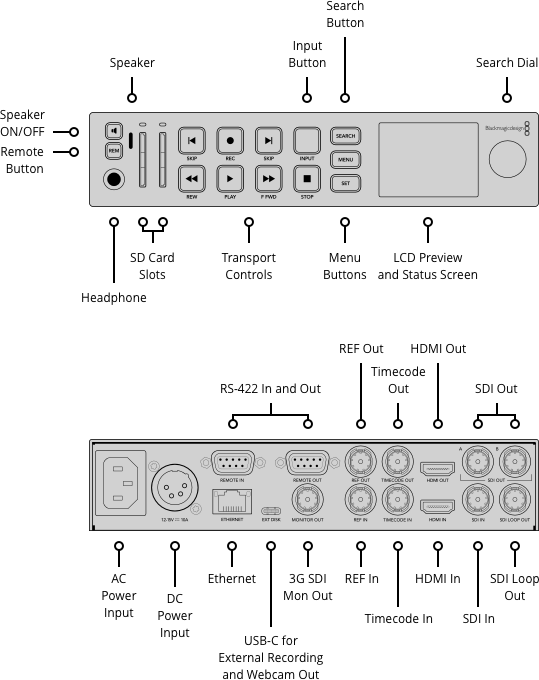

Connections
1 x SDI input, 2 x SDI outputs and a dedicated SDI monitor output, at 270Mb, 1.5G, 3G and 6G. 1 x HDMI 2.0 input and 1 x HDMI 2.0 output. Timecode in and out on BNC, reference in and out, and RS-422 in and out for deck control.

Fill and key playback
ProRes 4444 playback to 1080p60 with automatic fill and key routing over SDI outputs A and B. That means graphics, lower thirds and animated overlays play straight into a switcher's key inputs without any extra hardware — the single most useful reason to choose the Plus over the Mini.

Recording
SD, HD, 2K DCI, Ultra HD to 2160p30 and 4K DCI to 30p. 4:2:2 YUV 10-bit with HDR support for HLG and ST2084. Codecs: ProRes 422 HQ, 422, LT and Proxy to 2160p30; DNxHD 220x, 145 and 45 to 1080p60; DNxHR HQX, SQ and LB for 2K DCI and Ultra HD to 30fps; and H.264. 33-point 3D LUTs can be applied to the SDI monitor output for on-set grading reference.

Media
2 x SD card slots supporting UHS-I and UHS-II, formatted ExFAT or HFS+, plus a USB-C 3.0 expansion port for external disk recording.

Control and monitoring
Thirteen transport buttons with a search dial and 2.2 inch colour LCD. A built-in mono speaker and 6.35mm headphone jack for confidence monitoring. Remote control over RS-422 or the HyperDeck Ethernet Protocol on 1Gb/s Ethernet, with FTP upload.

Audio
16 channels of embedded SDI audio in and out, 8 channels of embedded HDMI audio in and out.

Power
Internal 100 to 240V AC supply plus a broadcast 4-pin XLR 12V DC input. 100W maximum. One year limited manufacturer's warranty.
