By Blackmagic Design

Blackmagic Design HyperDeck Studio 4K Pro Broadcast Recorder

Write Review
Regular price $2,429.99 AUD
Regular price Sale price $2,429.99 AUD
Tax included. Shipping calculated at checkout.
Ships Fast from Australia: Out of stock
SKU: HYPERD/ST/DG4P
Regular price $2,429.99 AUD
Regular price Sale price $2,429.99 AUD

The Blackmagic Design HyperDeck Studio 4K Pro is the flagship HyperDeck. It takes the HD Pro chassis to full 12G-SDI Ultra HD 2160p60 recording and playback, adds H.265 encoding, moves both Ethernet and USB-C to 10Gb/s, and fits a second internal power supply for redundancy.

Redundant power
Two internal 100 to 240V AC supplies plus a 4-pin XLR 12V DC input. For a deck recording a live event that cannot be repeated, dual mains supplies are the difference between a power fault being an inconvenience and being a disaster.

Connections

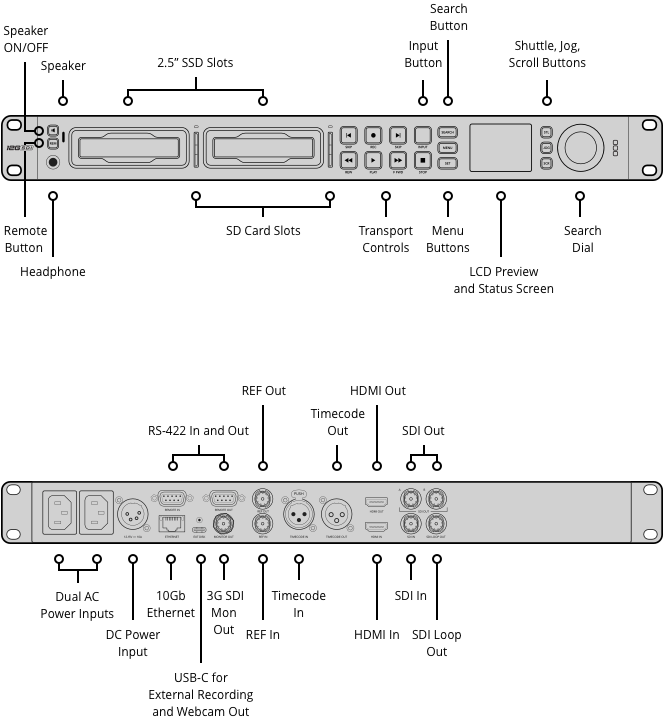

1 x SDI input, 2 x SDI outputs and a dedicated SDI monitor output at 270Mb, 1.5G, 3G, 6G and 12G. 1 x HDMI 2.0 input and output. Timecode in and out on XLR. Reference in and out on BNC. RS-422 in and out.

Recording and playback
Full SD, HD, 2K DCI, Ultra HD to 2160p60 and 4K DCI to 30p. 4:2:2 YUV 10-bit, REC 601, 709 and 2020, with HDR support for HLG and ST2084. ProRes 422 HQ, 422, LT and Proxy to 2160p60, and ProRes 4444 playback to 2160p60 with automatic fill and key over SDI A and B. DNxHD to 1080p60, DNxHR HQX, SQ and LB to 2160p60. H.265 in 4:2:2 10-bit and 4:2:0 10-bit for Ultra HD to 60fps, plus H.264 to 1080p60. 33-point 3D LUTs on the SDI monitor output.

Media and networking
2 x 2.5 inch SSD slots (SATA-II and SATA-III), 2 x SD card slots (UHS-I and UHS-II) and a USB-C 3.1 Gen 2 expansion port at up to 10Gb/s for external recording of everything up to 4K DCI. 10Gb/s Ethernet for the HyperDeck Ethernet Protocol, FTP transfer and network workflows.

Transport control
Sixteen transport buttons with a search dial and electronic clutch, and a 2.2 inch colour LCD.

Audio
16 channels of embedded SDI audio in and out, 8 channels of embedded HDMI audio in and out. Built-in mono speaker and 6.35mm headphone jack.

Power
100W maximum. One rack unit. One year limited manufacturer's warranty.
