By Blackmagic Design

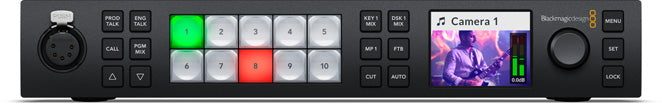

Blackmagic Design ATEM 1 M/E Constellation 4K Live Production Switcher

Write Review
Regular price $2,825.99 AUD
Regular price Sale price $2,825.99 AUD
Tax included. Shipping calculated at checkout.
Ships Fast from Australia: Out of stock
SKU: SWATEMSCN2/2ME1/4K
Regular price $2,825.99 AUD
Regular price Sale price $2,825.99 AUD

The Blackmagic Design ATEM 1 M/E Constellation 4K takes the Constellation HD chassis and upgrades every SDI connection to 12G, so the same ten input, six output switcher now handles full Ultra HD 2160p60. It fits the same two-thirds rack, one rack unit space.

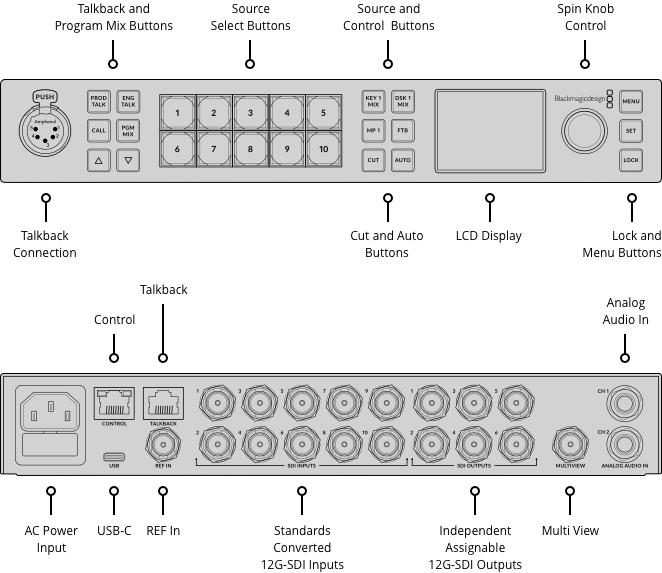

Ten 12G-SDI inputs
10 x 12G-SDI video inputs with automatic detection of 1.5G, 3G, 6G and 12G rates. Standards conversion and re-sync on every input. Tri-Sync or Black Burst reference input for genlock.

Outputs
6 x 12G-SDI outputs, each assignable as aux, preview or program, plus a separate down-converted HD program output. That HD output matters in practice: you can shoot and switch in Ultra HD while feeding an HD streaming encoder or legacy monitor without adding a converter.

Production features
4 upstream keyers, 4 advanced chroma keyers, 1 downstream keyer, 1 DVE, 1 stinger and 7 total layers. Two media players with fill and key, a 20-still media pool, and clip playback up to 2160p60. The 12G-SDI multiview output runs in HD or Ultra HD, configurable 16, 13, 10, 7 or 4 up.

Audio
28-channel Fairlight mixer with 6-band parametric EQ and dynamics. 2 x balanced 1/4-inch jack inputs, 8 channels embedded on SDI in and 16 on SDI out, 5-pin XLR talkback in and out and an RJ45 for third-party talkback. USB-C digital audio output integrates with Fairlight Live.

Control
10/100/1000 BASE-T Ethernet for ATEM Software Control and hardware panels. USB-C for setup and updates plus USB-C webcam output at 720p or 1080p.

Formats
720p and 1080i through 1080p60, and 2160p23.98 through 2160p60 Ultra HD. 4:2:2, 10-bit, Rec 709 and Rec 2020.

Power
Internal 100 to 240V AC supply, 90W. One year limited manufacturer's warranty.
